MP3 sound cards in Eurocard format

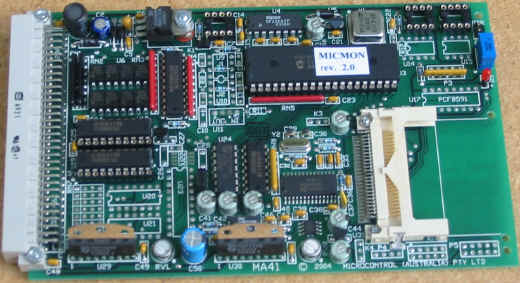

               MA41 - smart MP3 Eurocard


MA41 Features
Playback of MP3 sound files from CompactFlash  (up to 2GB) with sampling frequencies up to 48kHz and up to 320kbits/s bit rate.
Stereo Line Out and 5W mono  power amplifier,  serial and CAN ports,    on-board operating firmware MICMON with FAT16 support and user programmability,  8 opto-isolated inputs and 16 high current outputs, optional eight 0-10V analog outputs , animatronics capabilities, 12V DC power supply, CompactFlash header, single height 100 x 160 mm Eurocard .

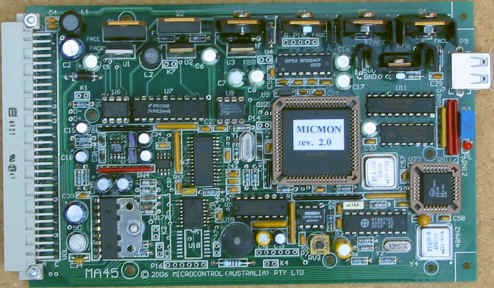

         MA45 - smart MP3 Eurocard


MA45 Features
Playback of MP3 sound files from USB mass storage ( up to 2TB) with sampling frequencies up to 48kHz and up to 320kbits/s bit rate.
Stereo Line Out and 5W mono  power amplifier, aux Line In input, serial and CAN ports ,  3x4 decimal keypad interface,   interface to a corded or cordless telephone for user control with DTMF tones, on-board flash memory IC for voice prompts or short announcements, on-board operating firmware MICMON2 with FAT16/32 support and user programmability, regulated or unregulated 12V DC power supply, includes precision 5V high current power source for powering external mass storage devices via USB port,  host USB port,  single height 100 x 160 mm Eurocard .

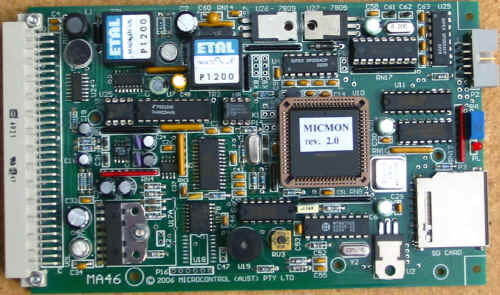

      MA46 - smart MP3 Eurocard

MA46 Features
Playback of MP3 sound files from SD flash card (up to 2GB) with sampling frequencies up to 48kHz and up to 320kbits/s bit rate.
Stereo Line Out and 5W mono  power amplifier,  GSM modem interface with transformer isolated audio,  DTMF decoding and generation, serial and CAN ports,  3x4 decimal keypad interface,   on-board flash memory IC for voice prompts or short announcements,  on-board operating firmware MICMON2 with FAT16/32 support and user programmability, regulated or unregulated 12V DC power supply,  SD header, single height 100 x 160 mm Eurocard .

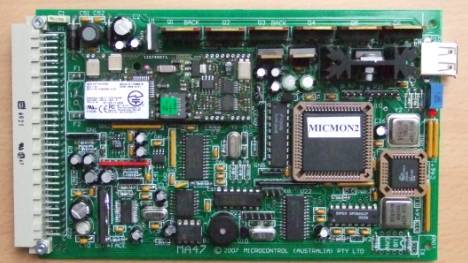

    MA47 - smart MP3 Eurocard

MA47 Features
Playback of MP3 sound files from USB mass storage ( up to 2TB) with sampling frequencies up to 48kHz and up to 320kbits/s bit rate.
Stereo Line Out and 5W mono  power amplifier, aux Line In  and microphone inputs, serial and CAN ports ,  3x4 decimal keypad interface,   on-board flash memory IC for voice prompts or short announcements, on-board operating firmware MICMON2 with FAT16/32 support and user programmability, regulated or unregulated 12V DC power supply,  includes precision 5V high current power source for powering external mass storage devices via USB port, host USB port, single height 100 x 160 mm Eurocard .
Recording and playback in 8/16-bit linear PCM format at 8/16 kHz (in addition to MP3 playback).
On-board socket modem for interfacing to PSTN network, TAM and audio archive/audio server firmware.
